XrayTech KBY57

Specialized XrayTech KBY57 X-ray television system designed for monitoring a wide range of monitoring objects.

Radiation Protection Chamber

As a protective chamber, both a stationary concrete chamber of the enterprise and a prefabricated lead-steel one can be used. The protective chamber is equipped with locking and alarm systems, a lighting system, a labyrinth window (for entering the necessary cables), supply and exhaust ventilation.

Manipulator

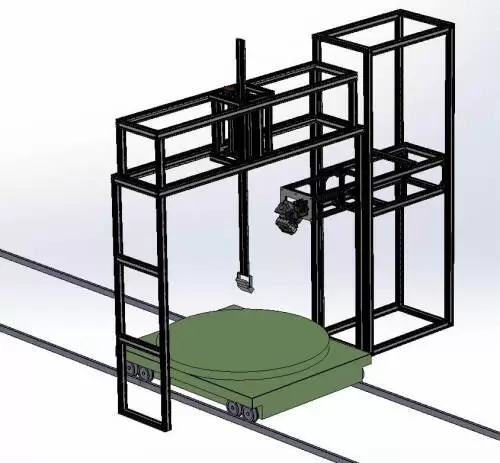

The system is equipped with a specialized manipulator, which has 8 axes of movement:

• vertical movement of the X-ray tube
• horizontal movement of the X-ray tube
• rotation of the X-ray tube
• vertical movement of the detector
• horizontal movement of the detector
• rotation of the detector
• horizontal movement of the cart
• rotation of the cart slide table

Transfer cart

The object of control is delivered to the control zone by means of a motorized cart. For the convenience of control and speed increase, it is equipped with a turntable.

X-ray machine

X-ray devices of cable type with anode voltages up to 450 kV are used as a source of X-ray radiation.

X-ray detector

As an X-ray detector, radiation-resistant high-resolution flat-panel detectors with the area of the working area necessary to solve the control tasks are used.

Management

The control of the detector manipulator, the X-ray tube manipulator and the cart is carried out remotely from the workplace of the operator of the X-ray television complex, which is located in the remote room using a video surveillance system. A duplicate push-button control panel for a motorized cart is located directly next to it.

In the presence of an optional automation system of the complex, automated control of the same type of products is possible according to a certain preset program.
