XrayTech KBY12
Cost:
On request
Description
Specifications

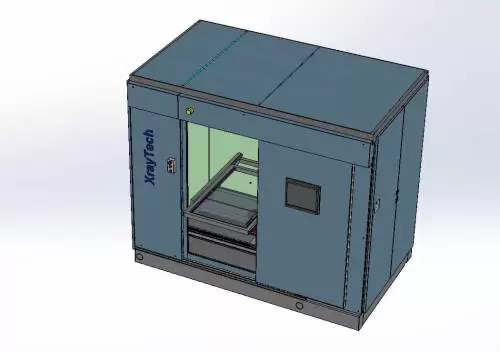

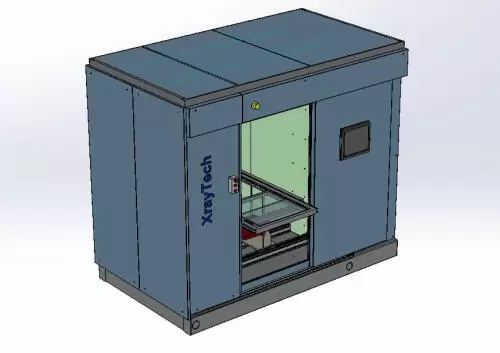

The universal X-ray television system XrayTech KBY12 is designed for the control of various products in shape and made of various materials.
The protective chamber is made of steel and lead in accordance with international and Russian standards for the protection of personnel from X-rays and is designed to work with X-ray machines with a voltage of up to 450 kV.
The lead-steel chamber is equipped with an automatic sliding door, a lighting system, a labyrinth window for cables and connection of supply and exhaust ventilation.
Loading and unloading of controlled objects is carried out using an object table, which can be extended beyond the protective chamber for ease of operation.
Moving the detector, moving the X-ray source and changing the modes of the X-ray emitter is carried out by the operator using the control panel located directly next to the protective chamber.
As a source of X-ray radiation, it is possible to use an X-ray machine of both cable type and portable.
The flat-panel detector is selected based on the tasks and budget.
| KBY12-160 | KBY12-225 | KBY12-320 | KBY12-450 | |
| Maximum high voltage | 160kV | 225kV | 320kV | 450kV |
| Generator output power | 4500W | 4500W | 4500W | 4500W |
| Type of X-ray machine | Stationary, cable type | |||
| The size of the subject table (LxW) | up to 800 х 800 mm | |||
| Maximum sample weight | 100кг | |||
| Vertical movement of the X-ray tube | 800 mm | |||
| Angle of inclination of the X-ray tube | up to ±45° | |||
| Horizontal movement of the detector | 800 mm | |||
| Detector tilt angle | up to ±45° | |||
| Cabin size | 2700 х 2100 x 2400 mm | |||
| Detector | Many types of X-ray television detectors with different input window sizes and spatial resolution can be used as part of the system. | |||
