Tripod for X-ray source

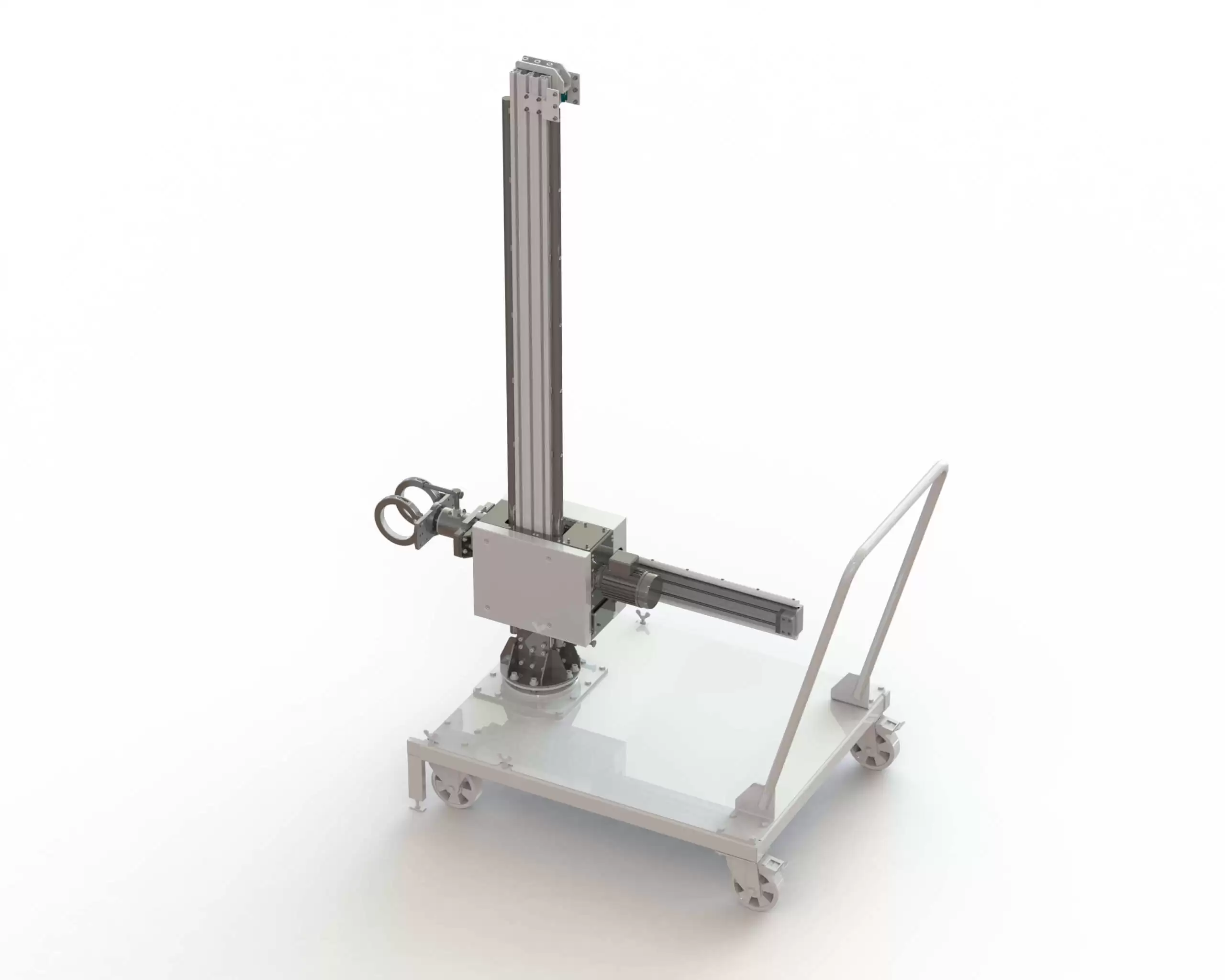

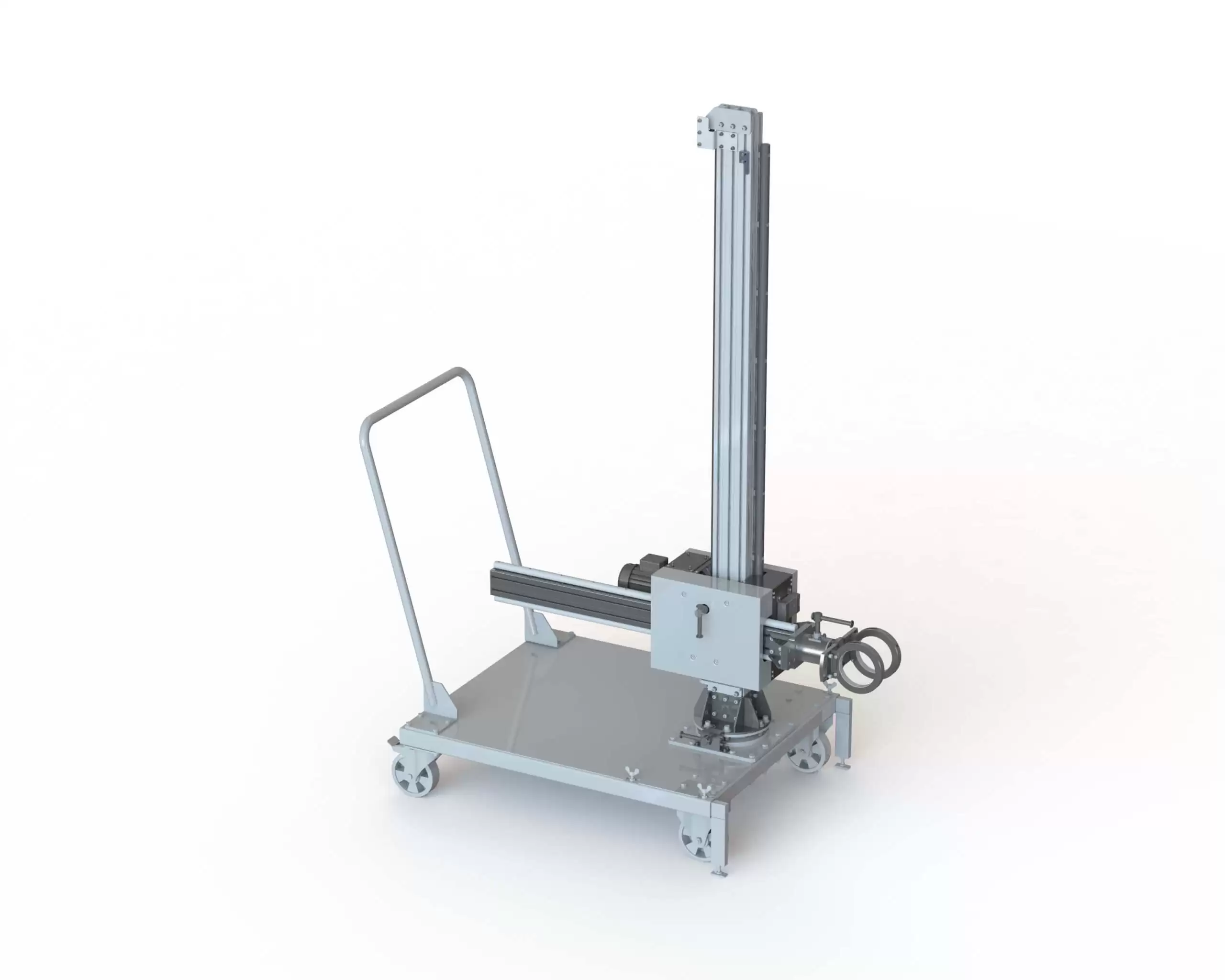

The tripod manipulator is intended for spatial placement of the X-ray source relative to the object of control. When ordering, you must additionally specify whether the monobloc of a portable X-ray machine or the X-ray tube of a stationary X-ray machine will be attached.
The design of the tripod device allows you to move the X-ray source along two axes and also rotate along three axes. Linear movements are controlled by a remote control. All turns are made manually.
A generator with a cooling system can be placed on the tripod platform, and a high-voltage cable can be fixed on a special holder.
Various versions of the tripod are available to order with the required number of degrees of freedom, range of movements and level of automation for specific customer tasks.
| Technical specifications | Value |
| Height movement limit | 1500mm |
| The stroke of the arrow in the horizontal plane | 550mm |
| The angle of rotation of the X-ray machine around its axis | 360 º |
| Angle of rotation relative to the boom axis | 360 º |
| The angle of rotation of the vertical tripod stand relative to its axis | 360 º |
| Loading capacity of the platform | 500kg |
| Maximum emitter weight | up to 50kg
|
| Dimensions (length x width x height) | 1650mm х 950mm х 2600mm |
| Power supply | 380V ±10% / 50Hz |
