Supprot for panoramic X-ray machine
Cost:
On request
Description
Specifications

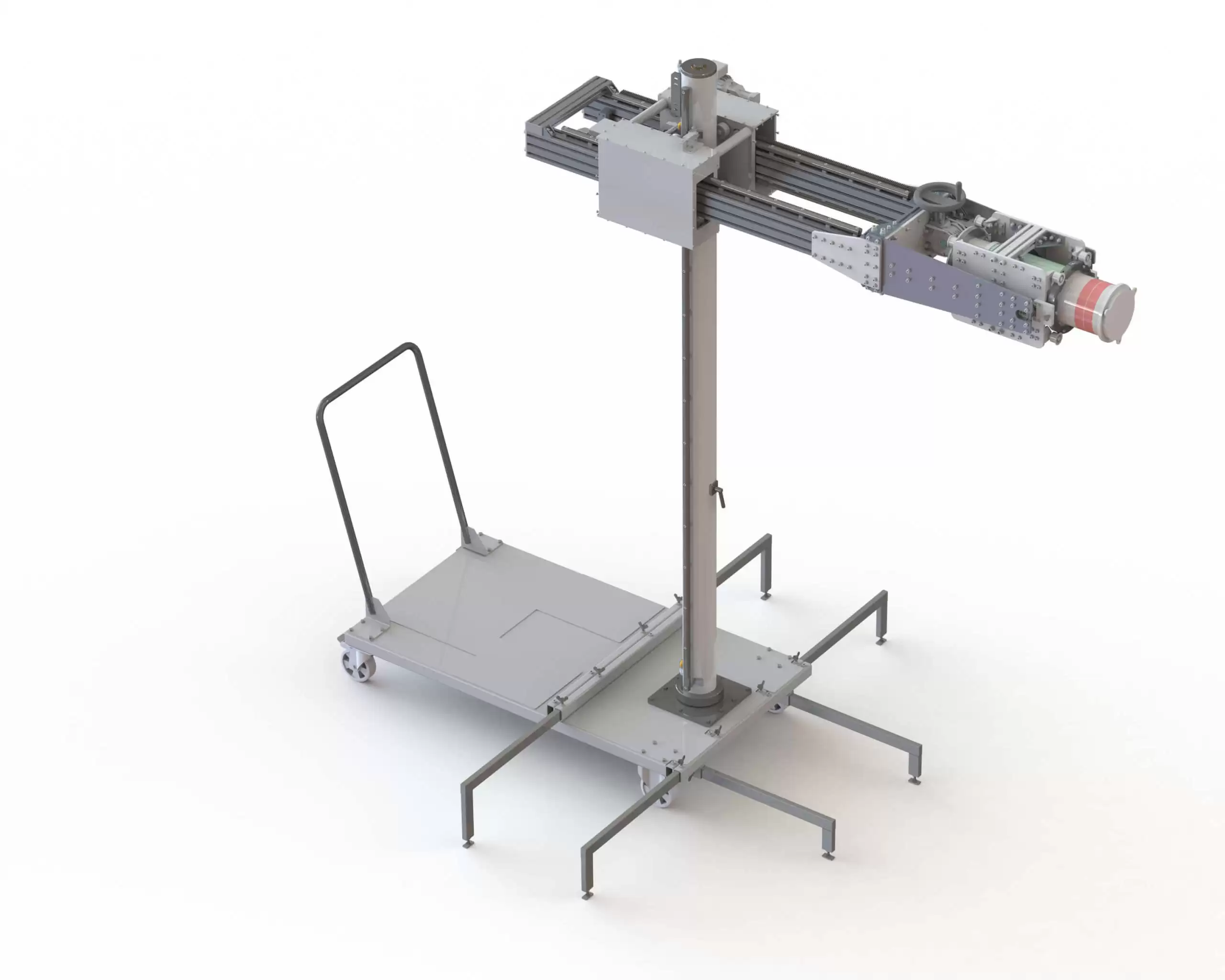

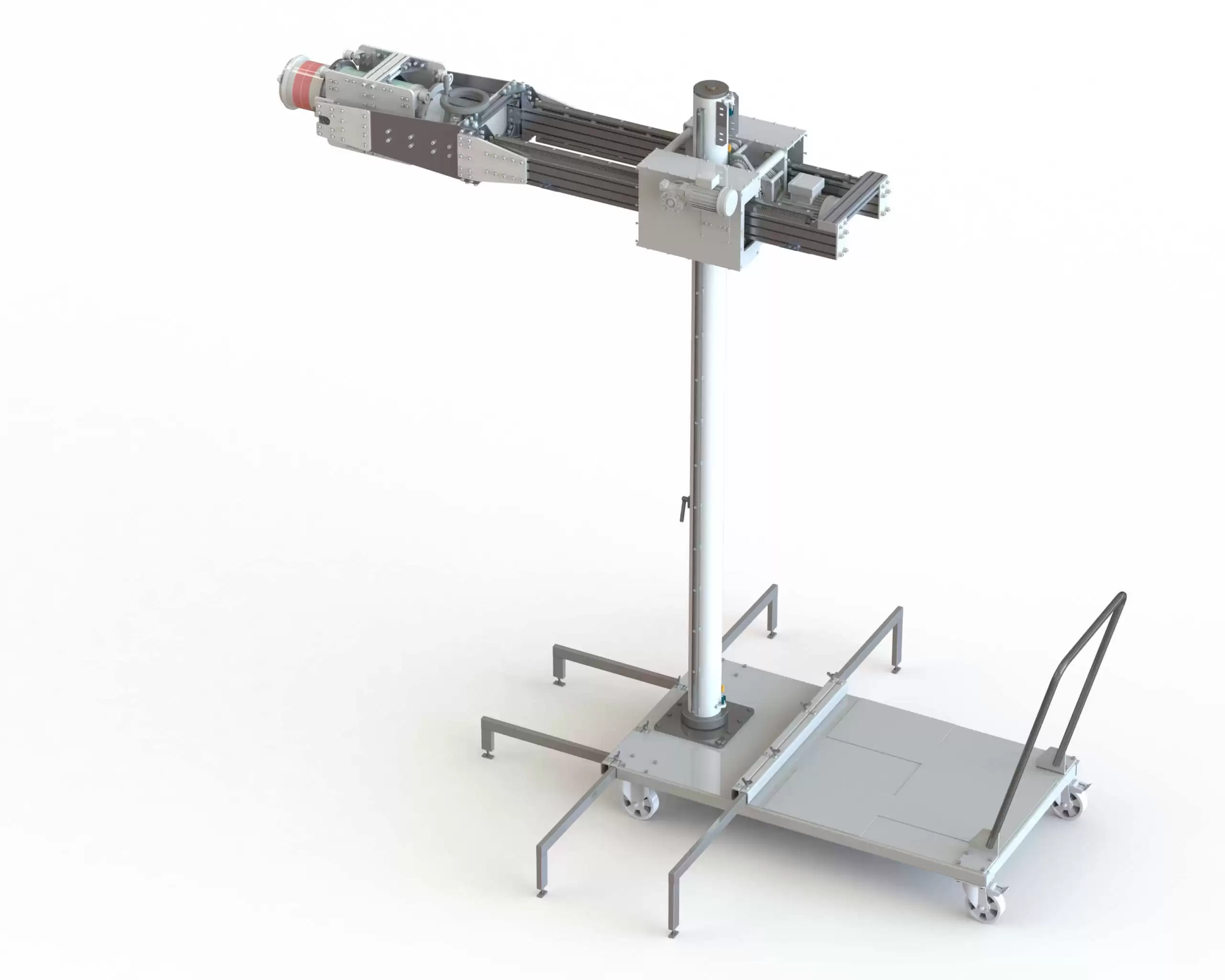

The tripod manipulator is intended for spatial placement of a monobloc panoramic X-ray machine relative to the object of control.
The design of the tripod device allows you to move the X-ray source along two axes and also rotate along two axes. Linear movements are controlled by a remote control. Turns are made manually.
| Technical specifications | Value |
| Height movement limit | 2200mm |
| The stroke of the arrow in the horizontal plane | 700mm |
| The angle of rotation of the X-ray machine in the vertical plane | ±90º |
| The angle of rotation of the vertical tripod stand relative to its axis | 360 º |
| Loading capacity of the platform | 500kg |
| Maximum emitter weight | 40kg |
| Dimensions (length x width x height) | 2990mm х 1050mm х 3250mm |
| Power supply | 220V/380V ±10% / 50Hz |
