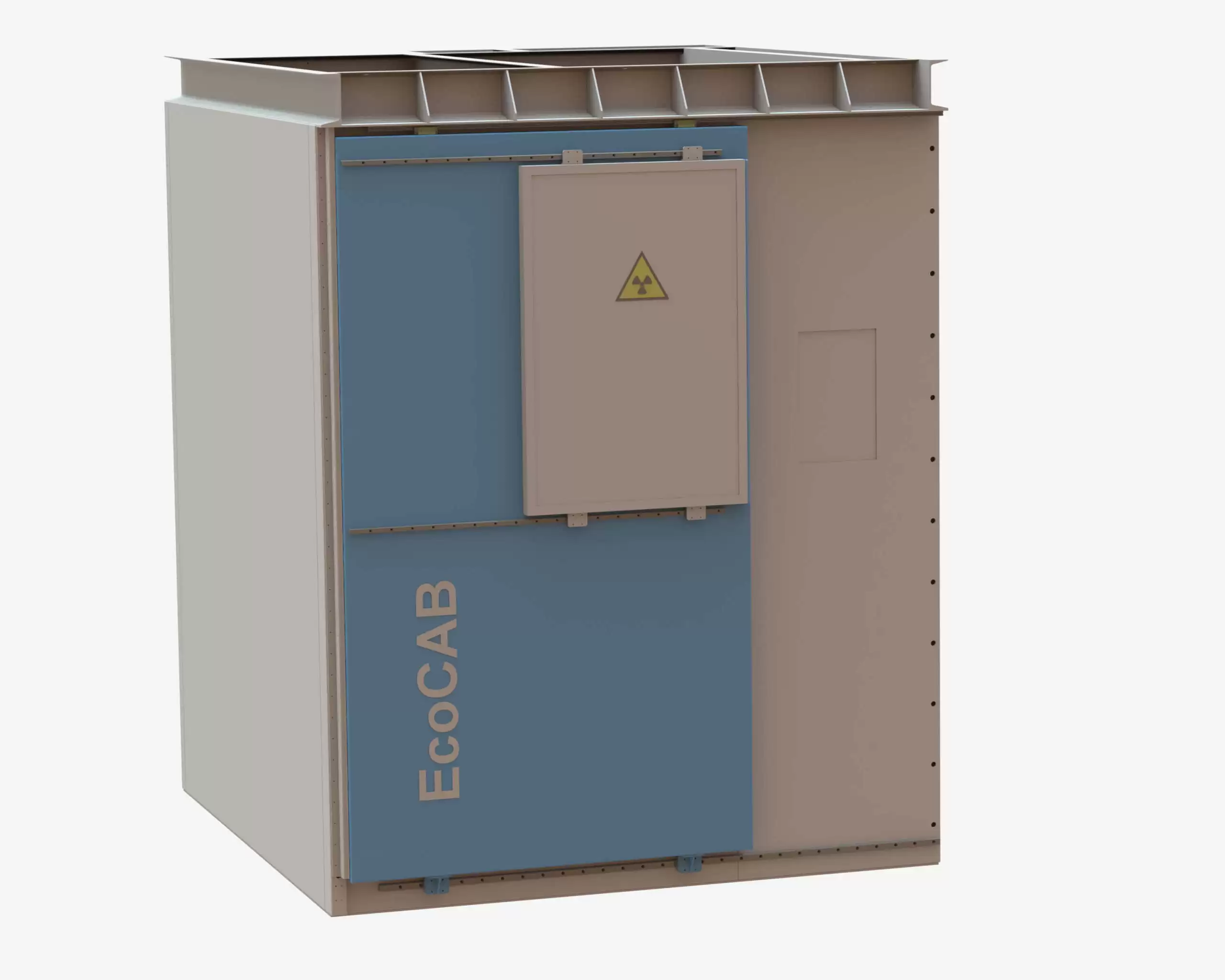

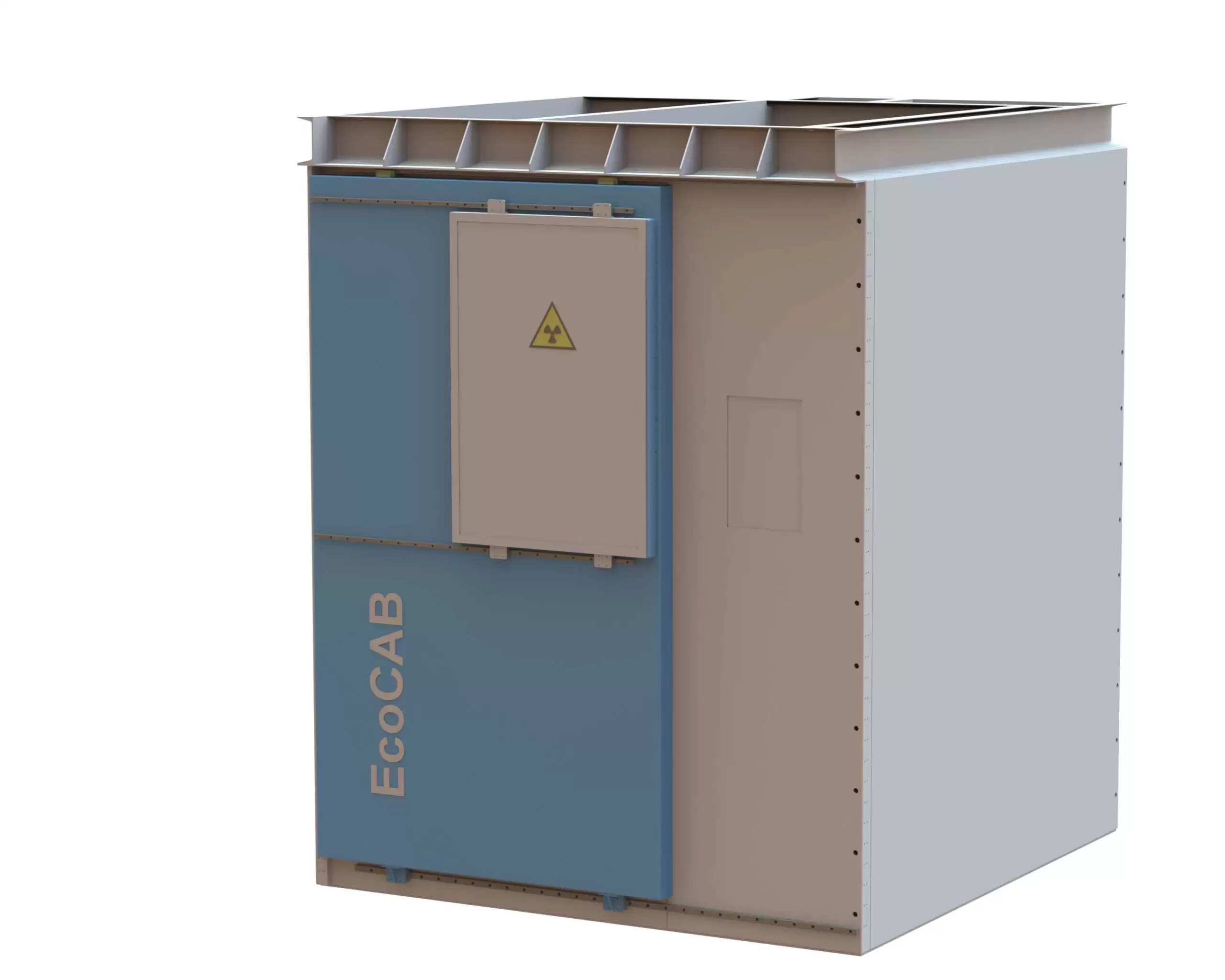

Radiation protection chamber EcoCAB 17x17x20

The EcoCAB radiation protection chamber ensures the radiation safety of personnel work when using an X-ray machine with an anode voltage of up to 250 kV. Relevant for small laboratories in the X-ray control of various medium-sized objects of control.

The EcoCAB protective chamber has been designed in accordance with the current regulations in the field of x-ray inspection. All necessary documentation is provided with the equipment.

The structure of the protective chamber is made of steel and lead, equipped with automatic sliding doors for X-ray protection, a lighting system, a labyrinth window for entering the necessary cables and connecting the supply and exhaust ventilation.

The door of the protective chamber is equipped with interlocks that ensure the termination of X-ray generation when the door is opened, and also block the turning on of the X-ray machine when the door is open. Outside and inside the chamber, well-marked and easily accessible buttons for emergency shutdown of the X-ray machine are installed.

A light panel “X-ray translucence” and a radiation hazard sign are installed on the protective chamber. In addition, in the event of a malfunction of the blocking and alarm systems, a protective circuit has been implemented that does not allow turning on the X-ray machine.

As a source of X-ray radiation, it is possible to use an X-ray apparatus, both cable-type and portable.

It is possible to develop the design of the radiation protection chamber according to the individual requirements of the customer or the configuration of the existing equipment.
