Hanging tripod
Cost:
On request
Description
Specifications

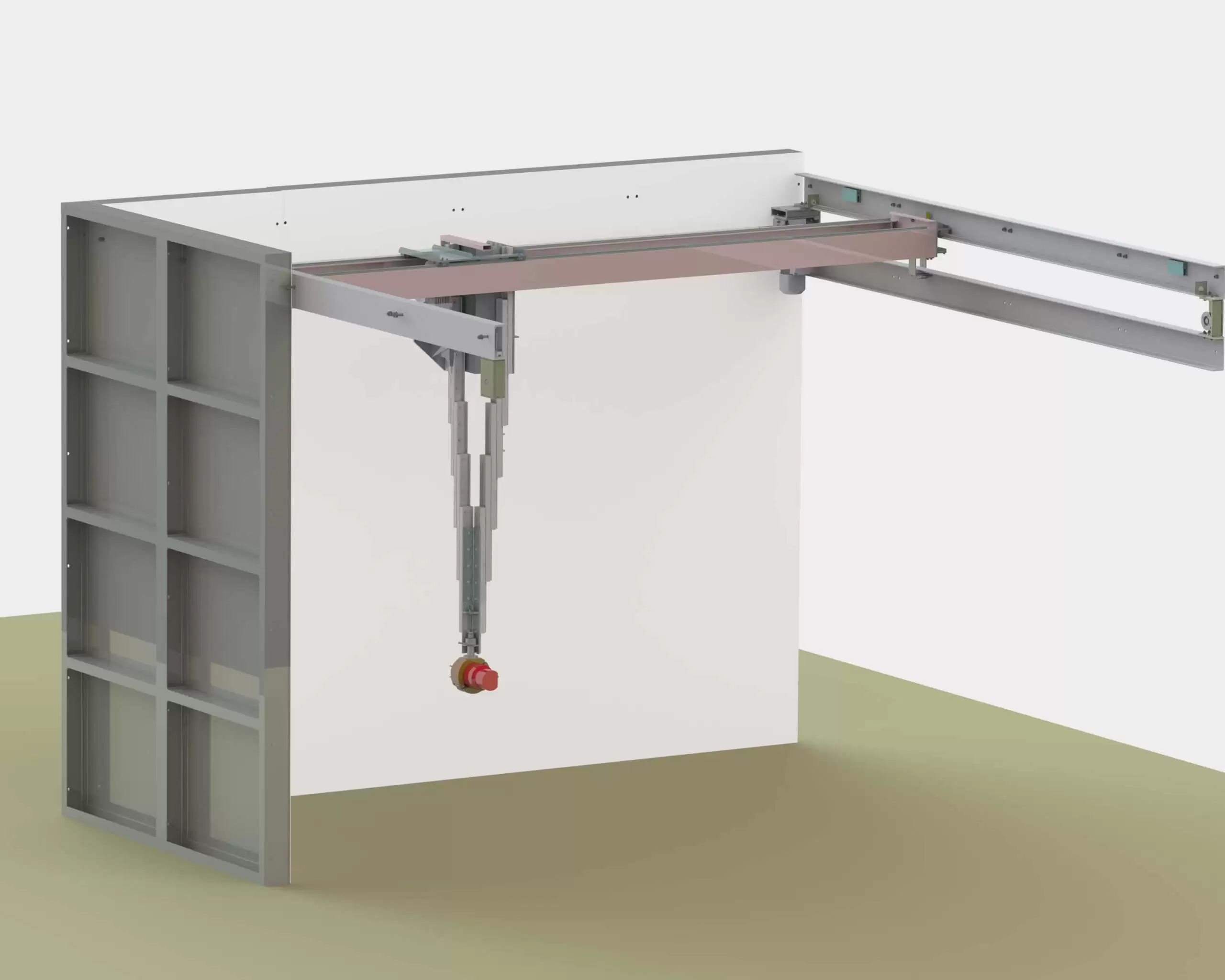

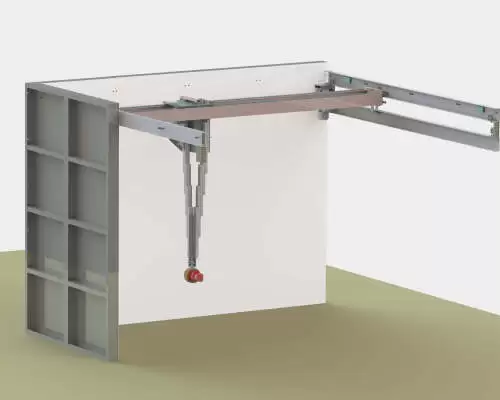

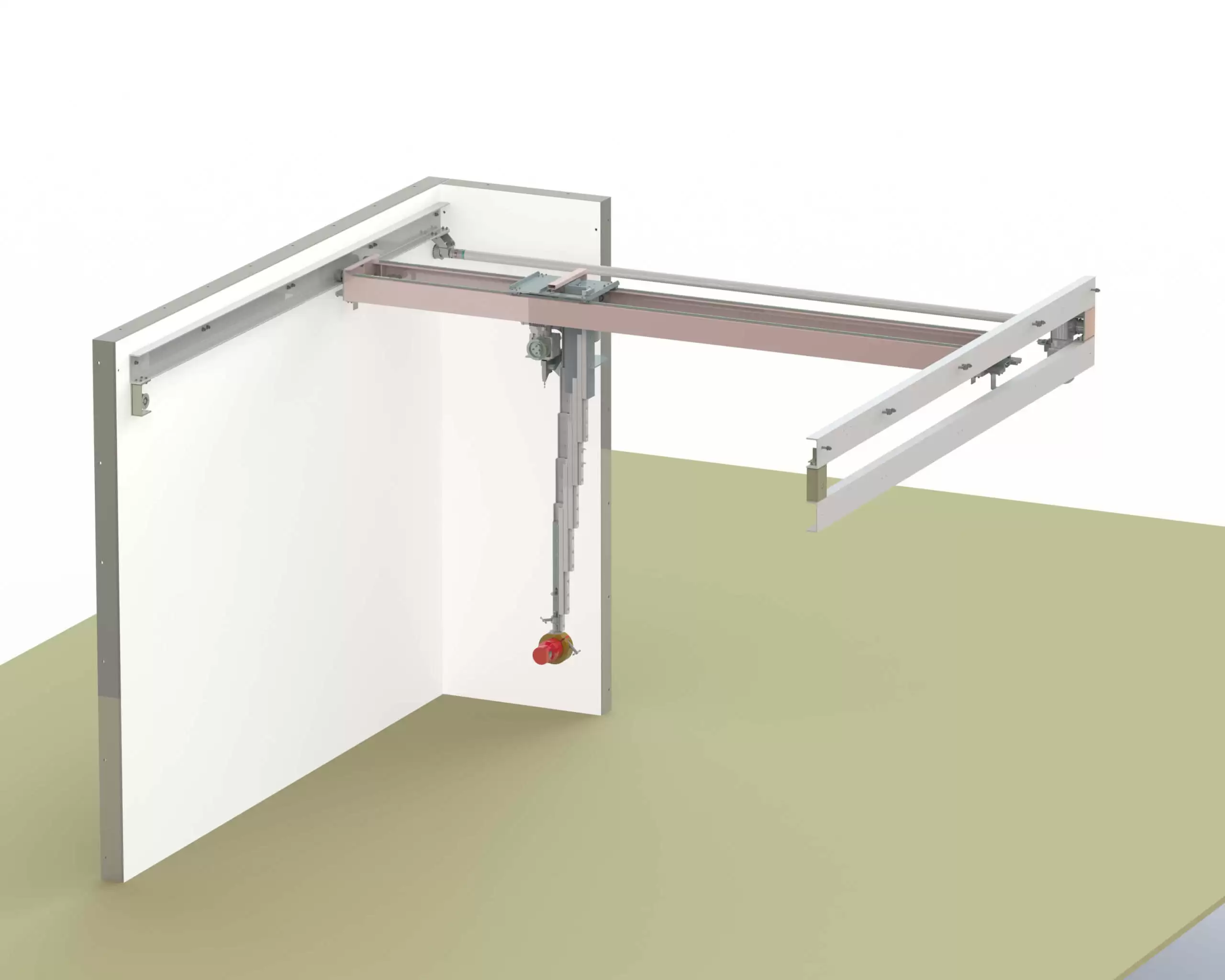

The tripod manipulator is intended for spatial placement of the X-ray source relative to the object of control. A design feature of the tripod is the use of a telescopic sectional system to move the tube vertically.
The design of the tripod device allows you to move the X-ray source along three axes and also rotate along two axes. Linear movements on all three axes are controlled by a remote control. The control panel is located in the protective chamber.
All turns are made manually.
Various versions of the tripod are available to order with the required number of degrees of freedom, range of movements and level of automation for specific customer tasks.
| Technical specifications | Value |
| Height movement limit | up to 6m |
| Moving along the room | up to 20m |
| Moving across the room | up to 6m |
| The speed of movement | up to 12 m/min |
| The angle of rotation of the X-ray tube around its axis | 360 º |
| Rotation angle relative to the vertical axis | 360 º |
| Maximum emitter weight | up to 150kg
|
| Power supply | 220V/380V ±10% / 50Hz |
